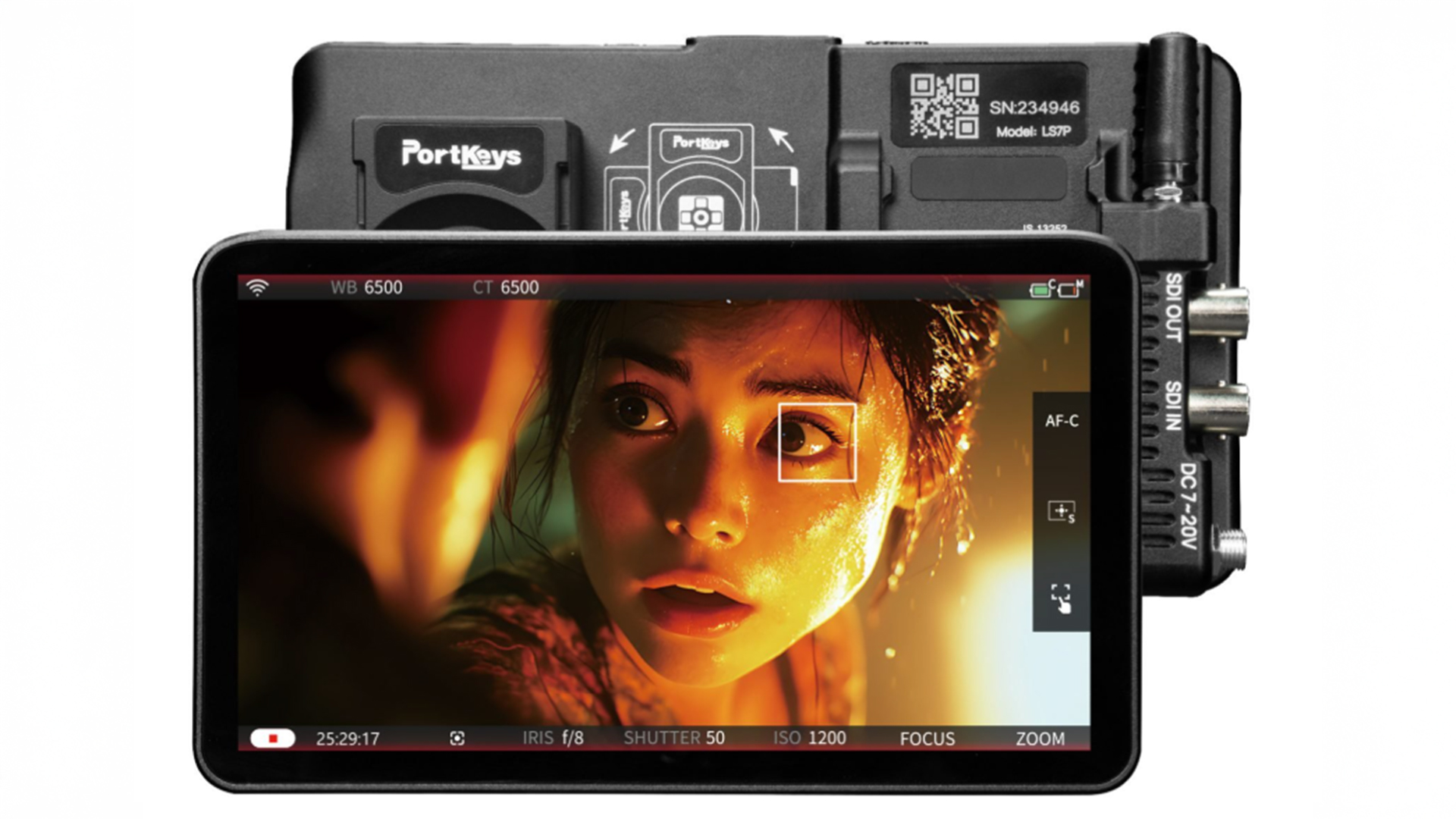

Portkeys has launched the LS7P, a 7-inch on-camera monitor with wi-fi digital camera management, 3D LUT help, and a one-to-many management system that connects to as much as 4 extra displays. Designed for filmmakers working in brilliant or demanding environments, it incorporates a 1000-nit, 10-bit show, full HDMI and SDI I/O with cross-conversion, and an influence passthrough plate for streamlined setups. If you happen to’ve ever wrestled along with your rig in harsh daylight or juggled focus pulls between cameras, the LS7P is likely to be price a glance. Let’s dive in!
Following the inexpensive PT5 III and the live-streaming PL5, the LS7P provides extra sturdy monitoring and management choices to the Portkeys lineup. In case you missed it, we obtained a take a look at it throughout NAB 2025.
Picture credit score: Portkeys
Design and construct
The Portkeys LS7P monitor is housed in aluminum, weighs 409g / 14.42 oz, and it’s fairly compact at 176.2 x 103.8 x 39.3mm / 6.94 x 4.08 x 1.54 inches. The 1920×1080 touchscreen incorporates a 10-bit (8+2 FRC) panel with 1,000 nits of brightness and a distinction ratio of 1000:1. Viewing angles are listed at 80°. Two display protectors are included.
4 assignable buttons. Picture credit score: Portkeys
HDMI and SDI inputs/outputs sit on reverse sides and help as much as 1080p60, with SDI-to-HDMI cross-conversion. A USB-A port (for LUTs and firmware) and a headphone jack are on the underside. Mounting threads are positioned on the highest, backside, and facet. Energy is provided by way of a single NP-F battery for as much as 3.5 hours or with a locking DC barrel connector. There’s additionally a rotatable dummy NP-F plate on the again that permits 8V/10W passthrough energy to equipment like wi-fi video receivers.
Again of the LS7P. Picture credit score: Portkeys
Mounting threads are situated on the highest, backside, and proper facet, with a 1/4″-20 mounting with finding pins alongside the highest edge. The touchscreen, which has a lock swap, has 4 assignable bodily buttons on the high.
Picture credit score: Portkeys
Portkeys LS7P monitor – key options
The LS7P runs on MOVNORM OS and has a full set of monitoring instruments. You possibly can load as much as 20 customized 3D LUTs and firmware by way of USB-A and apply them each on-screen and to the HDMI output. Anamorphic de-squeeze choices cowl all the usual ratios from 1.33x to 2.0x, plus a customized setting from 0.25x to 4.0x.
On-camera monitor. Picture credit score: Portkeys
Publicity instruments embody zebra, 13-level false coloration (ARRI-style), and a brand new Log Stops mode that divides the picture into publicity zones primarily based on the digital camera’s LOG profile. At launch, this auto-detection solely works with Sony, however help for different manufacturers is predicted in future updates. Additionally of curiosity to these capturing side-by-side comparisons or stop-motion: the freeze body operate allows you to seize a nonetheless to check towards the stay feed.
Picture evaluation options embody RGB and luma waveform, vectorscope, and luma histogram. There are a number of framing instruments, together with guides, grids, rectangle crop, crosshair, and examine discipline. Focus aids embody peaking with a customizable body, zoom help, and a vertical “stretch leg” mode. Extra controls cowl backlight, coloration temperature, HDR/HLG, black degree, sharpness, and picture flip (H/V).
Contact give attention to supported fashions. Picture credit score: Portkeys
Digital camera management and contact focus
Along with monitoring, the Portkeys LS7P monitor affords wi-fi digital camera management for a lot of mirrorless and cinema cameras, together with fashions from ARRI, RED, Canon, Sony, Nikon, Panasonic, and Blackmagic Design. Supported features embody aperture, shutter pace, ISO, white stability, and inside ND filter changes.
Contact focus is offered on supported fashions just like the Sony FX3, FX6, a7S III, A7C, and Canon EOS C80/C400. As soon as related, you possibly can shift focus factors instantly on the display, which is helpful for gimbal or shoulder-mounted setups the place reaching the digital camera isn’t preferrred.
One-to-many management system. Picture credit score: Portkeys
One-to-many management system
A standout characteristic of the Portkeys LS7P monitor is its “one-to-many” system. With this, you possibly can management as much as 4 different Portkeys displays wirelessly at distances as much as 50 meters / 165 ft utilizing a “grasp” monitor. Every related unit should help digital camera management. As soon as linked, the grasp LS7P can regulate settings like aperture, ISO, and focus factors throughout all cameras. This works no matter model.
This operate is suitable with different Portkeys fashions, together with the LH7P, LH5PII, BM7IIDS, and BM5IV WR. It’s not important for solo shooters. Nonetheless, it’s a helpful addition for groups working in multi-camera setups.
Picture credit score: Portkeys
Worth and availability
The Portkeys LS7P is offered for preorder now at $449, with delivery anticipated by the top of August. The bundle features a security field, 2.4GHz straight mini antenna, mini USB stick, display wipes, two display protectors, and a D-Faucet to five.5mm locking energy cable. For extra data, please see the Portkeys web site.
Have you ever used Portkeys displays earlier than? Does the LS7P supply one thing your present monitor setup doesn’t? Tell us within the feedback under.
