Spatial 3D stereoscopic video is simple to shoot on fashionable iPhones, however you’ll run into its limits fairly rapidly. Third-party apps can enhance issues, however they’ve limitations too, and for those who’re used to capturing with a few devoted cameras already, why not use them?
Nicely, for those who’re tempted to strive making some stereoscopic 3D video with a few cameras sitting on the shelf, it’s best to know what you’re in for — it’s more durable than you assume and there are many errors to be made. In your first few stereo shoots you’re sure to get one thing incorrect, however for those who observe now, you’ll hopefully keep away from catastrophic failure down the street while you pay money for an actual digital camera.
Experiments like this are a good way to push your expertise, however don’t get your hopes too excessive. Even for those who don’t use one thing this janky to shoot actual consumer initiatives, making it work with what you’ve obtained gives you real-world expertise capturing in 3D that you need to use for those who step up to a professional setup down the street. So, with some common 2D filmmaking gear handy, how will you hack collectively a fast stereo 3D rig for viewing in a headset or on a 3D show?
As an additional reminder that that is an experiment, I’m not worrying about correct 3D Spatial Audio in any respect. Video’s the main target right here.
Matching up two professional cameras
As only a few cameras can help you shoot at a excessive decision with a twin lens, most 3D professionals shoot with two separate cameras. I’ll be utilizing my Lumix GH6 and GH7, every one capturing at 5728×3024 at 50fps, with widescreen to fill an everyday body, excessive decision for picture high quality, and better body fee for sync and to get nearer to actuality. (Notice that open gate on these cameras tops out at 30fps, and it’s more durable to make 4:3 video fill the body in an Apple Imaginative and prescient Professional. This 16:9 decision permits for increased body charges.)
This setup brings flexibility, but in addition a number of worlds of ache, as a result of it’s a must to now think about:
- Matching the cameras and the lenses
- Alignment of the 2 cameras
- Inserting the 2 cameras shut sufficient collectively
- Matching white steadiness between the 2 cameras
- Syncing recording between the 2 cameras
That’s loads to get proper. Hopefully you’ll have two equivalent cameras; when you’ve got two related cameras with the identical measurement physique and sensor then you may make do, however attempt to reduce any variations. Motion cameras are an choice right here — use no matter you’ve obtained.
This iPhone Spatial picture didn’t fairly match white steadiness between the 2 angles; can we do higher?
If you happen to’re attempting mirrorless, two equivalent lenses might be a more durable ask, however you may need a few package zooms sitting in the back of a drawer, or a favourite workhorse lens you’ve purchased twice. If you happen to’re utilizing zooms, you’ll want to zoom to the identical finish of the vary on each lenses, to make sure consistency. I discovered {that a} comparatively extensive body, 14mm on micro-four-thirds, labored greatest. Set every digital camera to the identical aperture, and think about stopping all the way down to hold the entire scene in focus — if gentle permits.
White steadiness is one thing you may management, although it’s best to carry out a guide white steadiness with a gray card — every lens is totally different. To assist with media administration, set the identical time of day, and for those who can management file naming, give every digital camera a singular prefix, together with “A” and “B” or “L” and “R”.
With the cameras and lenses matched, time to line them up, as a result of if the 2 cameras aren’t pointing in the identical course on the identical aircraft, typically the footage is unfixable. Sure, it’s attainable to maneuver or rotate one angle a small quantity, but when the 2 cameras are dealing with totally different instructions, that’s a more durable concern.

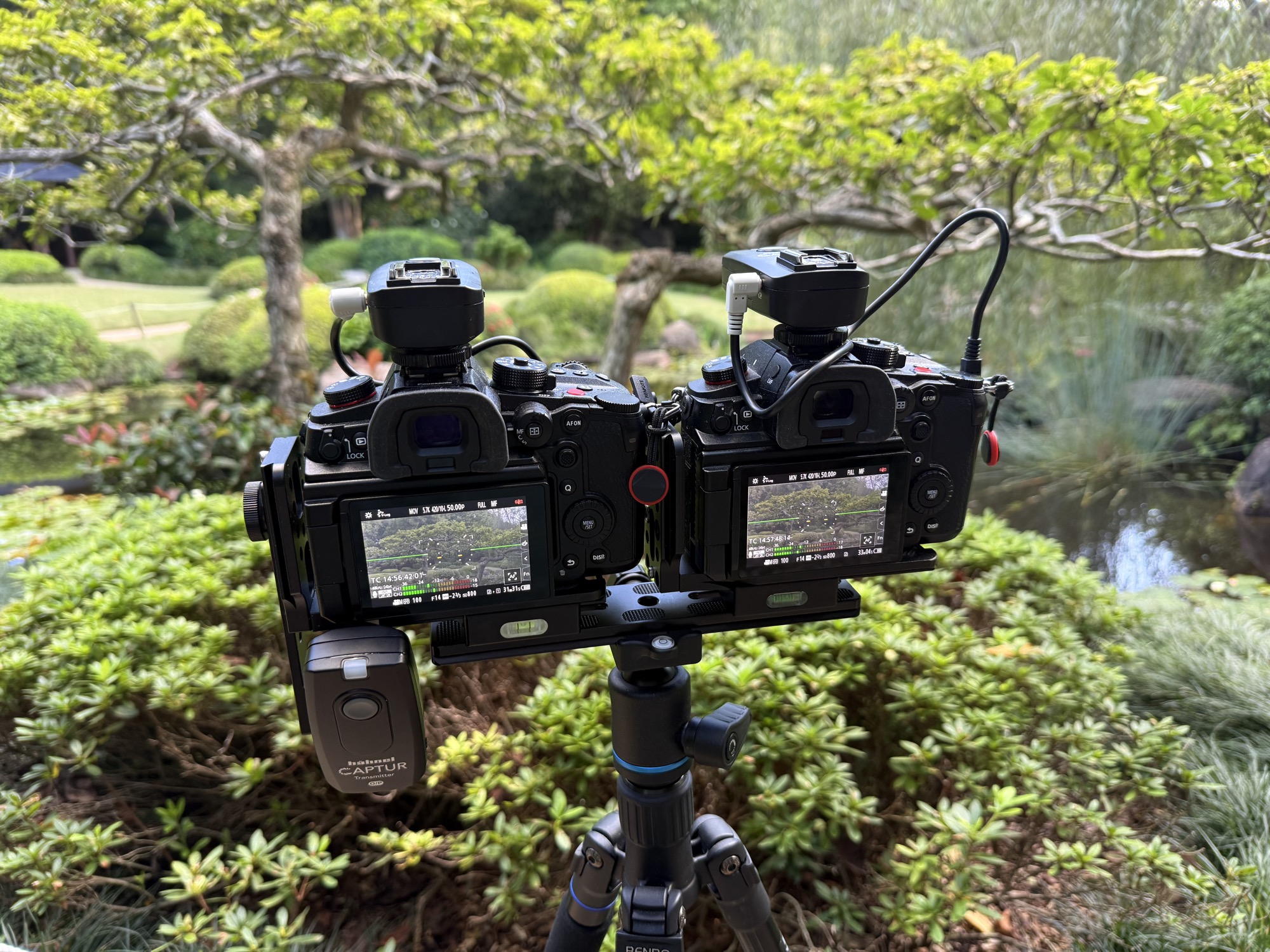

A GH6 and GH7, with matching package lenses and synced settings… however an enormous hole between them
Whereas the skilled answer is to purchase a specialised mount, if you wish to experiment then you may simply seize a number of Arca-Swiss plates and use them to mount your two cameras side-by-side onto a double-width plate. In a super world, these mounting plates would all embrace locking pins to maintain cameras dealing with the identical means, however hey, this isn’t a super world.
Subsequent, you’ll in all probability run proper into the subsequent concern: the space between the lenses.
Contemplating inter-ocular distance and depth
Most cameras are too giant to keep up a human-like inter-ocular distance (round 63mm) when positioned side-by-side, and worse, if you would like to have the ability to movie something shut up, you’ll must minimise that distance (hypostereo) all the way in which all the way down to only a few mm, inconceivable with any interchangeable lens. In stereo images, the 1/30 Rule says that the closest object to the digital camera ought to be no less than 30x the inter-ocular distance. Hmm.
The skilled answer is to make use of a beam-splitter rig, putting the 2 cameras at 90° from each other. This does make mounting simple, but it surely’s in all probability not one thing you’ll be shopping for as a part of an ad-hoc experiment. What to do?
It’s attainable to put two cameras nearer collectively by rotating one 90° counterclockwise and the opposite 90° clockwise, with the underside edges of every digital camera dealing with one another. This brings its personal points, although. You’ll sacrifice horizontal decision, complicate mounting, and now that the 2 sensors are offset 180° from each other, chances are you’ll expertise rolling shutter variations. A quick-moving topic in a single digital camera will now be scanned in opposing instructions in every digital camera, and this might not be one thing you may repair.
Mounting two mirrorless top-to-bottom solves one drawback, however creates others
So are you able to simply… go together with an enormous hole between the cameras? My GH6 and GH7, horizontally adjoining, have an inter-ocular distance of about 150mm. You may shoot like this (hyperstereo) however you’ll need to be fairly cautious with shot composition, since you’ll be exaggerating the obvious depth of every little thing within the shot, and if there are objects each close to and much, your eyes received’t be capable of make all of the objects converge.
Put one other means, the depth of the picture has an excessive amount of dynamic vary.
To keep away from points and comply with the 1/30 Rule, hold every little thing distant from the digital camera, and check out to not have any seen objects within the first 4.5 meters or so of the shot. In case you have objects close to and much, it’ll be uncomfortable to observe. Additionally watch out for anybody strolling from close to to far — perspective turns into a little bit wonky.
Excellent sync will not be easy
With two near-identical cameras dealing with the identical means, shut collectively, capturing a really related picture from two barely totally different positions, all that’s left is to ensure they begin and cease recording at precisely the identical time. Sadly, that is exhausting. If you happen to’re fortunate sufficient to have two Blackmagic Micro Studio 4K G2 cameras, you need to use Genlock to maintain the cameras precisely in sync, however only a few different options are ok.
To chop an extended, painful story brief, wi-fi shutter launch methods are totally different for each model of digital camera and require customized cables that aren’t all the time included with buy of a wi-fi receiver. Now that I’ve a whole set of Hahnel Captur (one transmitter, two receivers) I can sadly affirm that no less than when used with a GH6 and a GH7, this doesn’t lead to a frame-accurate synced recording. It’s attainable to sync timecode between two Lumix cameras by way of the flash sync port (and the adapter cables that shipped with every digital camera plus a separate BNC cable) however this doesn’t enable for synced recording.
Sadly, sync between a number of cameras isn’t frequent, and it’s not all the time one thing you may add.
What about two iPhones?
You may shoot with two iPhones (in Log!) utilizing Ultimate Lower Digital camera and Ultimate Lower Professional on a separate iPad to regulate recording, or utilizing Blackmagic Digital camera to sync recording throughout each telephones with out an iPad, however, in need of borrowing from a member of the family or colleague, I believe most professional shooters don’t have two matched iPhones. If you happen to do, this might be an honest answer, however care have to be taken when mounting them.
If you happen to flip one cellphone over to get the 2 lenses nearer collectively, you might see rolling shutter points. This may be overcome by mounting the 2 telephones simply offset, caseless, one behind the opposite, however that introduces a slight positional distinction between the 2 lenses. None of those choices are excellent.
Set all of the settings, twice
You set white steadiness on each cameras earlier, however double-check all the opposite settings to ensure each cameras agree on each setting. Verify that your cameras are nonetheless aligned. Autofocus ought to be off, as a result of the 2 cameras received’t regulate at precisely the identical time, decision ought to be no less than 4K, and body fee is as much as you. If you would like a cinematic 24-25fps, that’s high-quality, however capturing at the next body fee (50 or 60fps) will reduce any time hole between the 2 angles attributable to imperfect sync, and you may all the time conform to a decrease body fee in submit.
Anyway, for those who’ve gotten this far within the considerably janky course of, time to report! Double-check all of your settings, make sure that nothing has shifted, and begin recording on each cameras. Seize a number of totally different pictures with totally different sorts of topics, as you is perhaps stunned what works effectively in 3D and what doesn’t. In case your topics are transferring slowly (or comparatively static) then life is less complicated, however seize a number of takes of every shot simply in case.
How do you mix these clips in submit?
After you’ve copied all of the recordsdata, drop them into the identical place, then load them into DaVinci Resolve (Studio) or Ultimate Lower Professional; both means, it’ll get a little bit messy in case your clips aren’t completely synced.
In FCP, you’ll need to create a stereoscopic undertaking with the identical width because the clips. Within the Information Inspector, set Stereoscopic Conform to Monoscopic, and within the Video Inspector, make sure that to uncheck Stereoscopic. Ensuring they’re in sync, place them one above the opposite on the similar cut-off date, and alter Place X to put the clips on the left and proper of the stereo body. Add an Adjustment Clip above each clips so you may appropriate them collectively, and switch Stereoscopic ON for that Adjustment Clip.
In Resolve, you may choose an identical pair of clips, right-click, then select Stereoscopic 3D > New Stereoscopic 3D Clip after which select if the clip you clicked on ought to be the left or proper eye.
Manually syncing clips in Resolve works effectively in case your workflow isn’t rock stable
The Stereoscopic 3D Sync command right here gives a way by which correctly created pairs of clips could be synced in bulk, but when there’s any jank in your workflow, this could fail. If you happen to’re experimenting, guide sync is okay. Create a brand new timeline from one among your stereo clips.
If you happen to’ve shot correctly, a bulk sync operation is advisable
Slipping half of a stereo clip in time is simple in FCP, however in Resolve, you’ll want to make use of ⌘⌥ to slide by a body. (That’s Management-Alt- on a PC.) Thank goodness for shortcuts.
And the remainder of the edit?
In FCP, appropriate Convergence within the Inspector to regulate the depth of the shot, however there’s no built-in software to appropriate stereo alignment. With a dual-camera setup like this, you may transfer every of the clips round manually, or you need to use a plug-in referred to as Spatial Equipment which makes alignment simpler. Full disclosure — I made this plug-in, and sure, I do profit from purchases. You could must appropriate coloration on all sides of the clip too, and also you’ll discover viewing choices (together with Anaglyph for pink/cyan glasses and Each Eyes) within the Viewer’s drop-down menu.
Two massive 50 fps clips, synced and aligned in Ultimate Lower Professional with Spatial Equipment
In Resolve, head to the Coloration web page and click on on the Stereo 3D icon to the suitable of the central panel. Press the hyperlink icon subsequent to Convergence and you may scrub on the numbers to regulate the depth of the shot. The Imaginative and prescient tab enables you to management how the stereo is proven to you, and Anaglyph and Facet by Facet are choices within the Out menu right here. To appropriate stereo alignment, you need to use two totally different computerized choices to the suitable, underneath Stereo Alignment, or repair them manually utilizing the Eye controls to the left. Coloration Matching choices to the decrease proper assist make your two pictures look the identical.
Exporting in FCP is simple for those who export to the Apple Imaginative and prescient Professional preset; it makes an MV-HEVC clip, although this tops out at 4096px per eye. Take a guess on the appropriate metadata, however you received’t be capable of present a baseline (inter-ocular distance) of larger than 100mm — as a result of that’s loopy, proper? You’ll need to ship to Compressor if you wish to export the complete 5728×3024 per eye authentic decision as MV-HEVC, however Vimeo received’t recognise this as a Spatial video file. Sure, it’s a bummer that I can’t share my 6K authentic. Export File is okay if you would like a side-by-side model.
Exporting from Resolve can also be simple: within the Ship web page, ensure you export to HEVC, then head to the Stereoscopic part and select Each Eyes As > MV-HEVC. The identical metadata choices are right here too.
In spite of everything that…
A janky setup with cameras which are too far aside can nonetheless seize a number of pictures which look fairly good, however that massive hole between lenses causes some actual weirdness, and it’s simply not going to work for professional shoots. The picture high quality is actually higher than an iPhone in “spatial” mode, however while you transfer your head, the picture will warp round in disagreeable methods. Some pictures simply didn’t work in any respect, however sufficient did. On the plus aspect, discovering which pictures actually make your head harm a little bit is all a part of the training journey. Take them out of the edit, work out why they didn’t work, and bear in mind the teachings to your first nice stereo digital camera.
Additionally, congratulations: you’ve accomplished one thing few others have. Stereo images has been round for over 100 years, however actually top quality stereo video? It’s not frequent, and that’s as a result of it’s a lot more durable to drag off.
On the finish of the day, for those who’ve mounted two cameras like this, they’ll be higher for images than for video
To allow on a regular basis stereo shoots, we want extra dependable cameras which assist stereo video, and which provide an everyday, slender area of view. Immersive 180° stereo is nice, however you don’t all the time want immersion, it’s exhausting to repurpose immersive in 2D, and to do immersive effectively requires an much more specialised, costlier digital camera.
In a super world, a identified producer would promote a top quality small digital camera with two lenses, or a pair of cameras with built-in, frame-perfect sync assist. The visionOS 26 assist for Huge FOV motion cameras, which I’ve examined, implies that two of these synced collectively by some means might be an inexpensive not fairly 180° 3D answer.
Within the meantime, rig up some gear for enjoyable, and even for those who don’t find yourself utilizing this for excellent 3D video, it’ll work very properly for 3D stills. However that’s for one more article. Get pleasure from!
